Boston MBTA - Dual Direction GLX + B Branch Consolidation
Rapid Transit
Updated Version 2022 - Including Green Line Extension and B Branch Station Consolidation

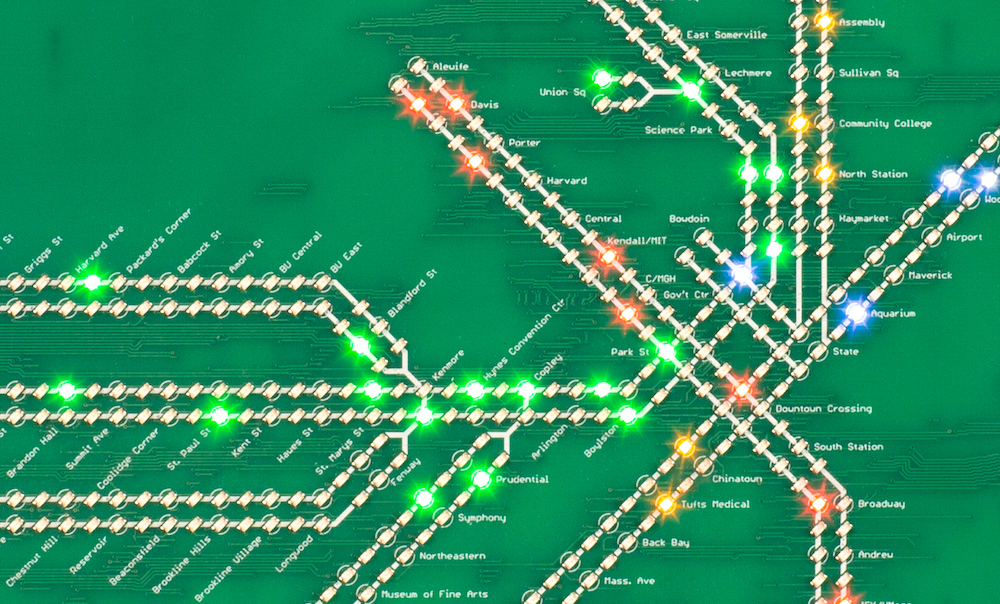

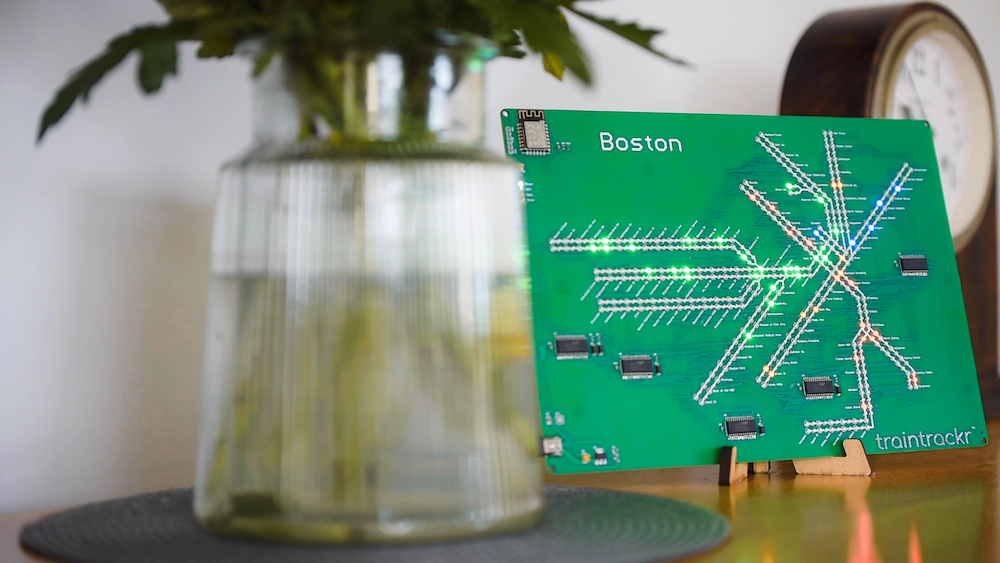

Tracks trains on the MBTA in Boston, showing live locations as each vehicle moves around the network.

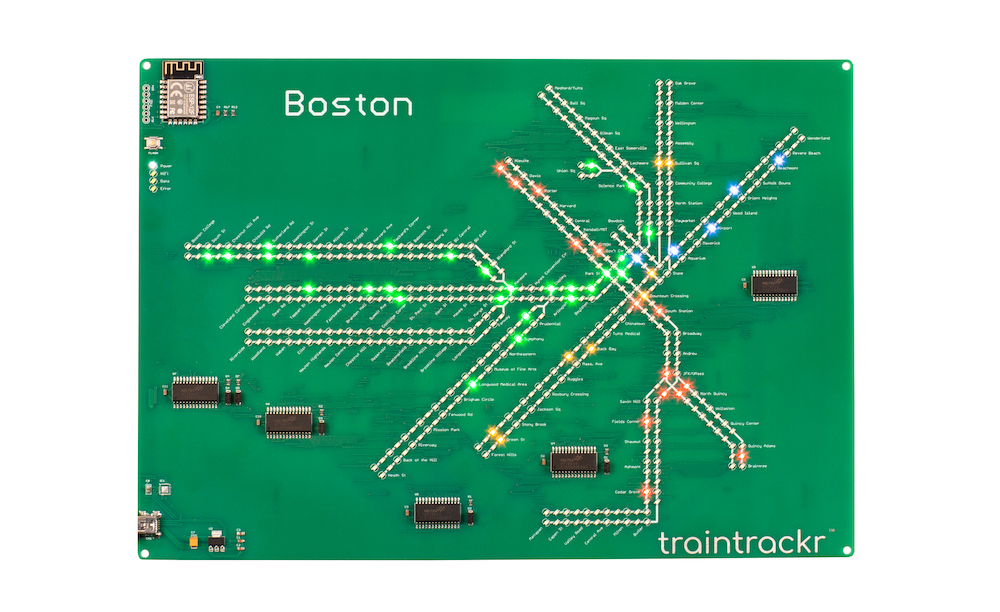

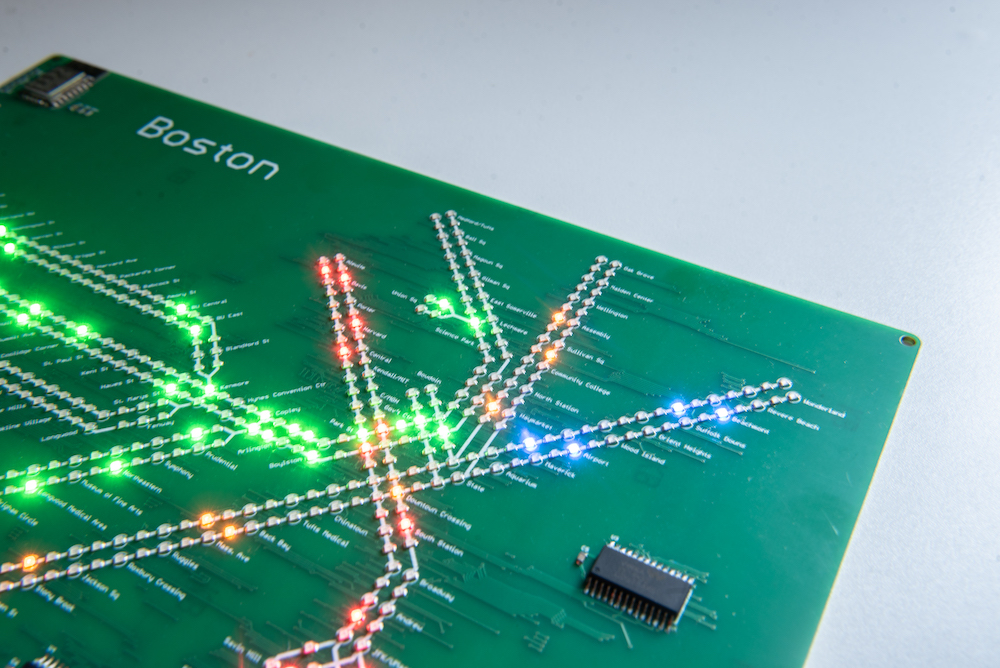

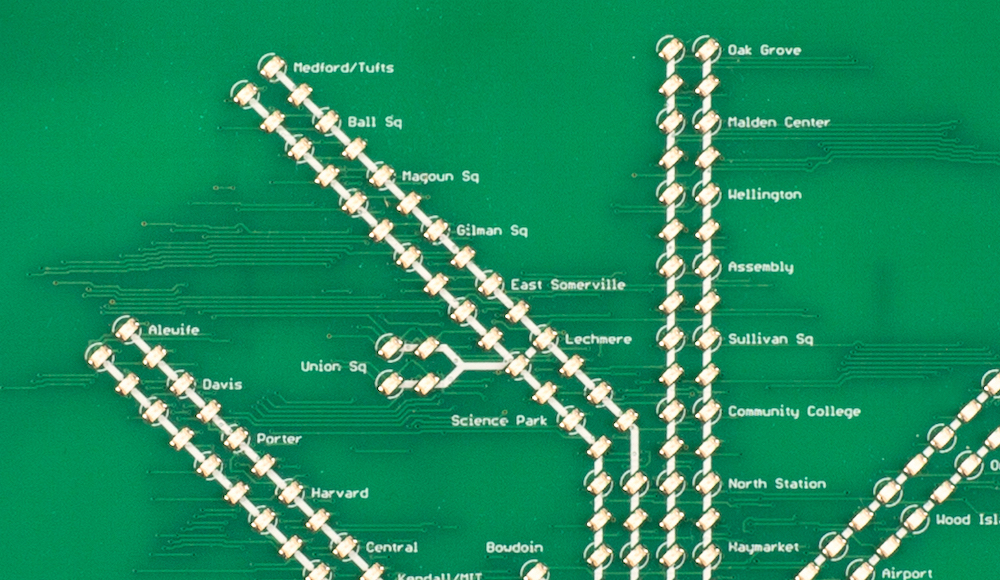

This board shows trains going in both directions to all Red line, Blue line, Orange line and Green line stops
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources

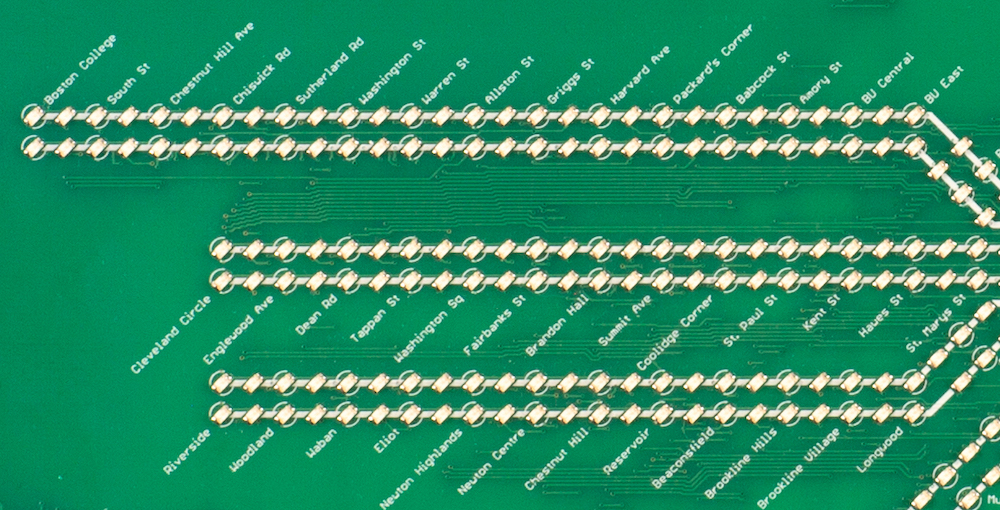

- LED Count: 518
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: Red, Green, Blue, and Orange
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable

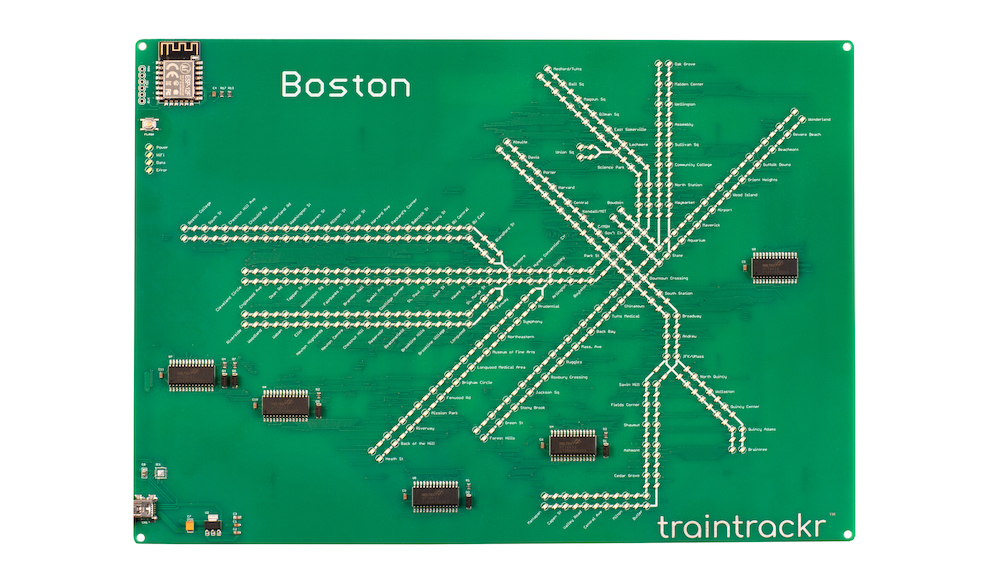

- Material: 1.6mm FR-4
- Size: 285mm x 200mm (11.2in x 7.9in)
- Colour: Green
- Microcontroller: ESP8266
- LED Driver: HT16K33
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?

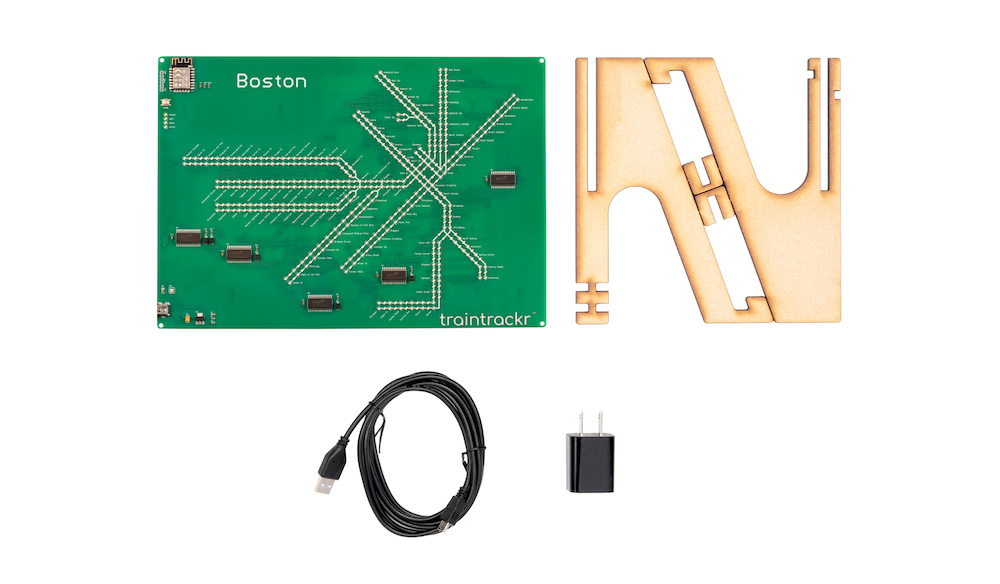

Package Contains
- Live Tracker

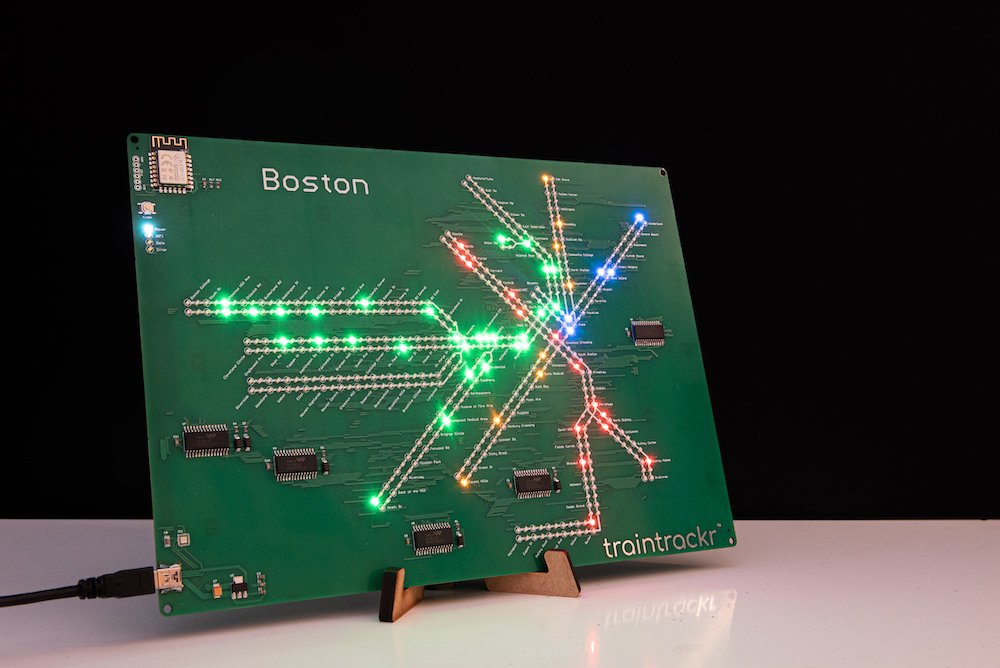

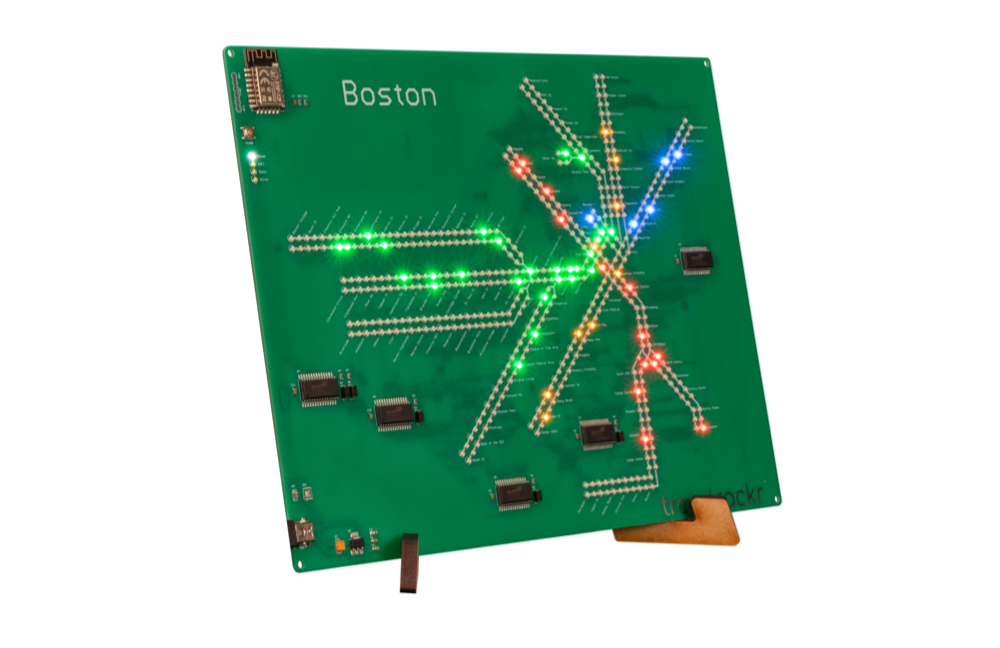

- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
Hats off to @TrackrTrain these PCBs of rail networks that use live open data to show real-time movements are awesome.
