London Underground Large

Rapid Transit

**** Updated for 2023 **** We've added the Elizabeth Line and Northern Line Extension

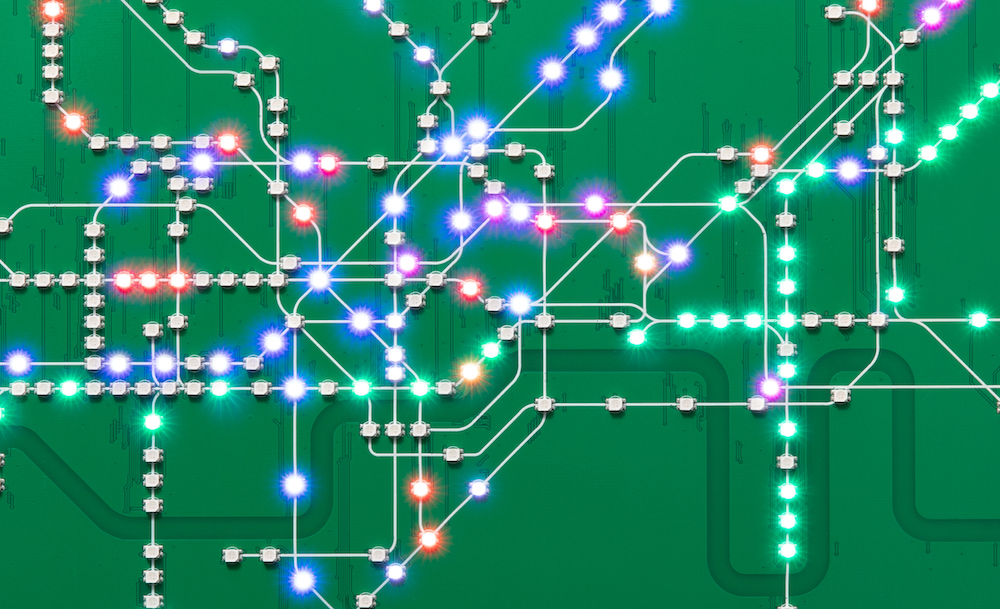

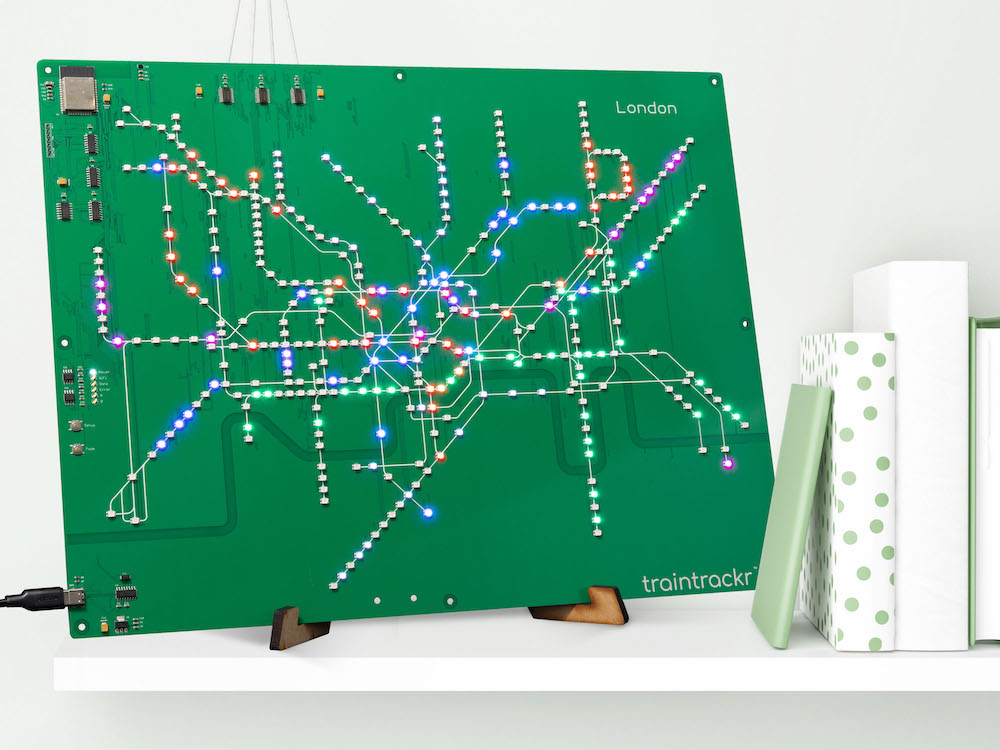

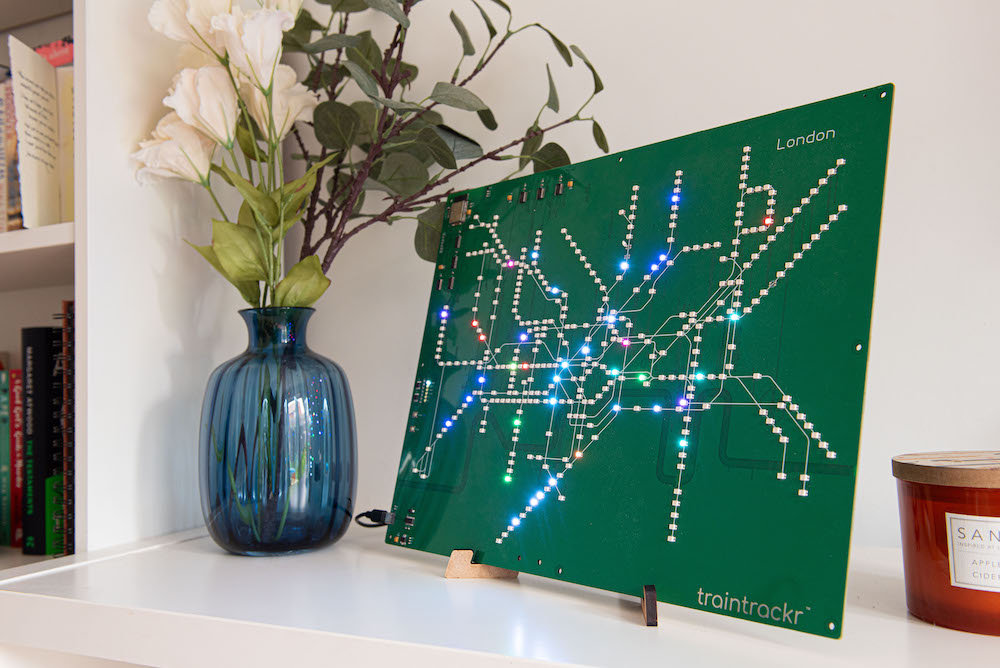

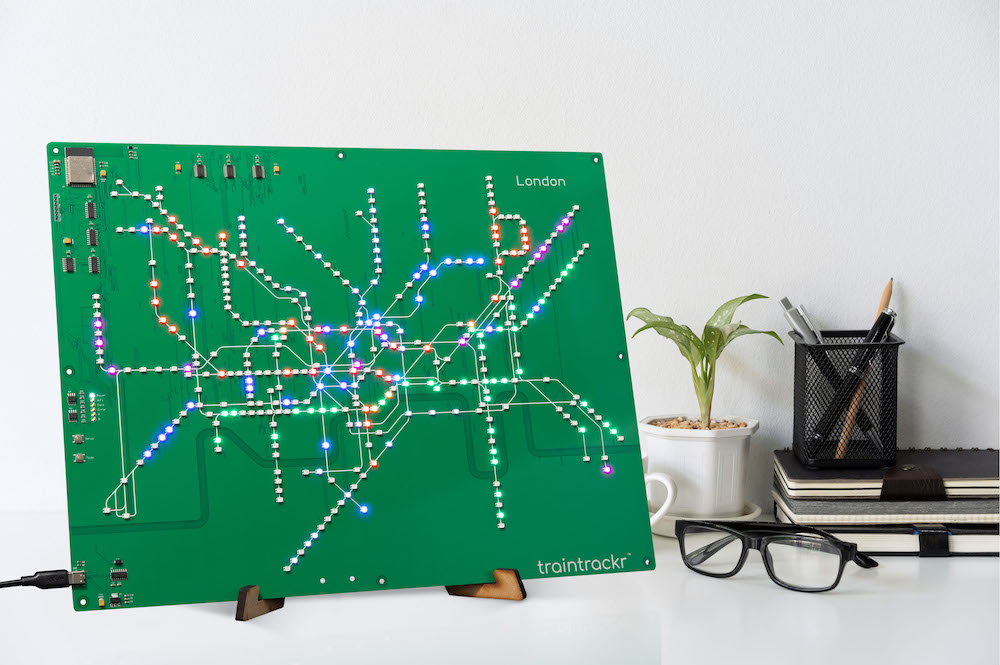

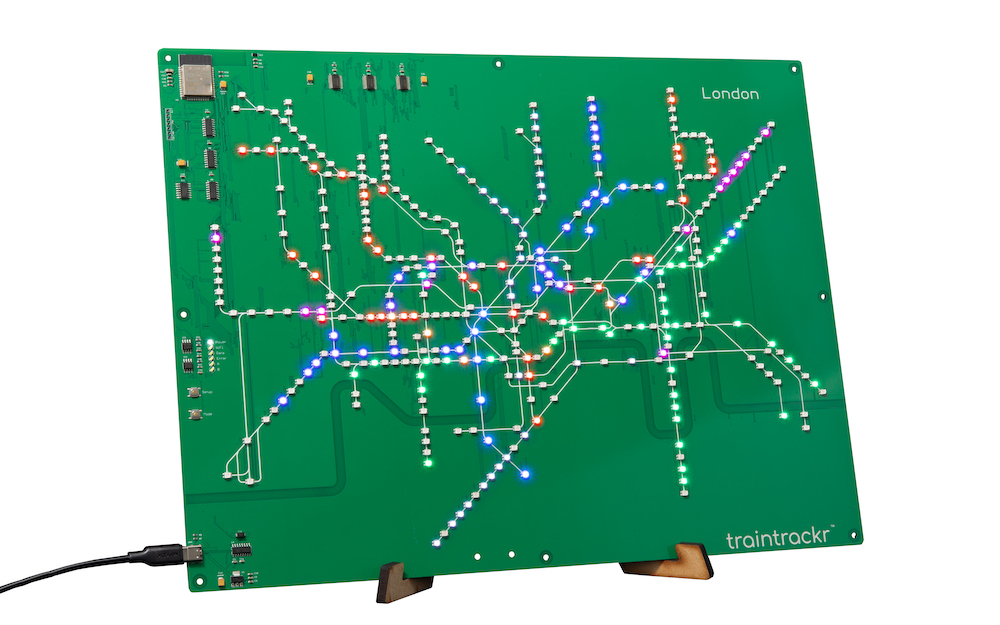

Tracks trains on the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.

Board shows all 13 main underground lines: Bakerloo, Central, Circle, District, DLR, Hammersmith & City, Jubilee, Metropolitan, Northern, Piccadilly, Victoria, Elizabeth Line, Waterloo & City

Receives live data over WiFi

LEDs update every 1/10 second

Uses 373 RGB (Red, Green, Blue) LEDs

$315

In Stock

Ships from the US

Ships to the US
and Canada
Switch to UK

Includes Standard
1 Year Warranty

Designed in
London UK, and
Somerville USA

Looking for shipping to the UK and Europe? Try our UK Site

Specifications

Connectivity

WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
Data: Connects to our server every minute
Or connect to your own data sources

Display

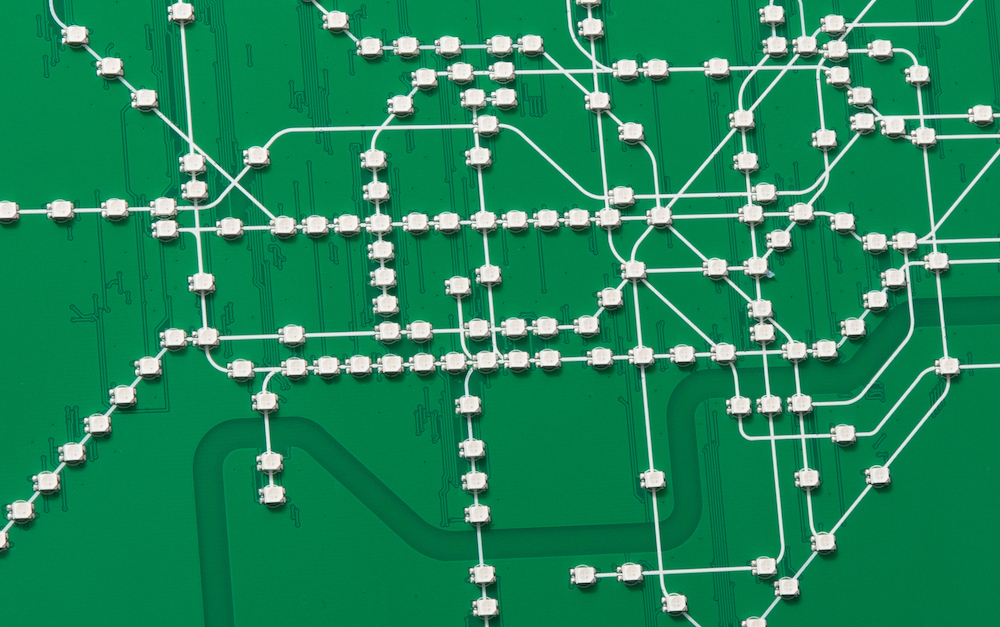

LED Count: 373
LED Type: 3528 Surface Mount
LED Size: 3.5mm x 2.8mm
LED Colour: RGB (Red, Green, Blue)
Brightness control: 16 Level

Power

500mA @ 5V
Included: Power supply and Cable

Circuit Board

Material: 1.6mm FR-4
Size: 400mm x 300mm (15.7in x 11.8in)
Colour: Green

Main Components

Microcontroller: ESP32
LED Driver: ICN2038/ICN2012

Stand

Material: 6mm MDF
Laser cut ready to assemble

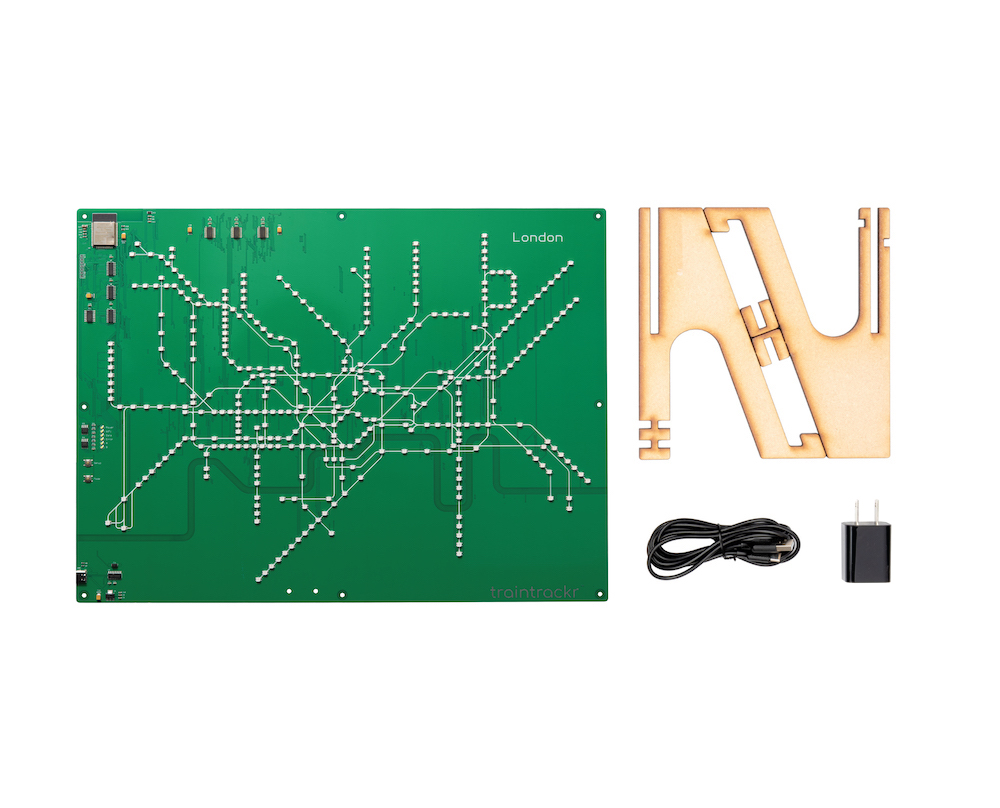

What's in the Box?

Package Contains

Live Tracker
Wooden Stand
Power Supply and Cable
Setup Instructions

Shipping and Warranty

Shipping

Ships to the US and Canada
Tracking code supplied once dispatched

Warranty

Standard 1 Year

Maker Friendly

Firmware

Flash the chip via FTDI Pins
Program using Arduino IDE or similar
Reprogrammable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
