Specifications


Connectivity
  • WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
  • Data: Connects to our server every minute
  • Or connect to your own data sources
Display
  • LED Count: 200
  • LED Type: 1616 Surface Mount
  • LED Colour: RGB (Red, Green, Blue)
  • Brightness control: 16 Level
Power
  • 1000mA @ 5V
  • Included: Power supply and Cable
Circuit Board
  • Material: 1.6mm FR-4
  • Size: 170mm x 210mm (6.7in x 8.3in)
  • Colour: Green
Main Components
  • Microcontroller: ESP8266 (ESP-12E)
  • LED Driver: IS31FL3741A
Stand
  • Material: 6mm MDF
  • Laser cut ready to assemble

What's in the Box?

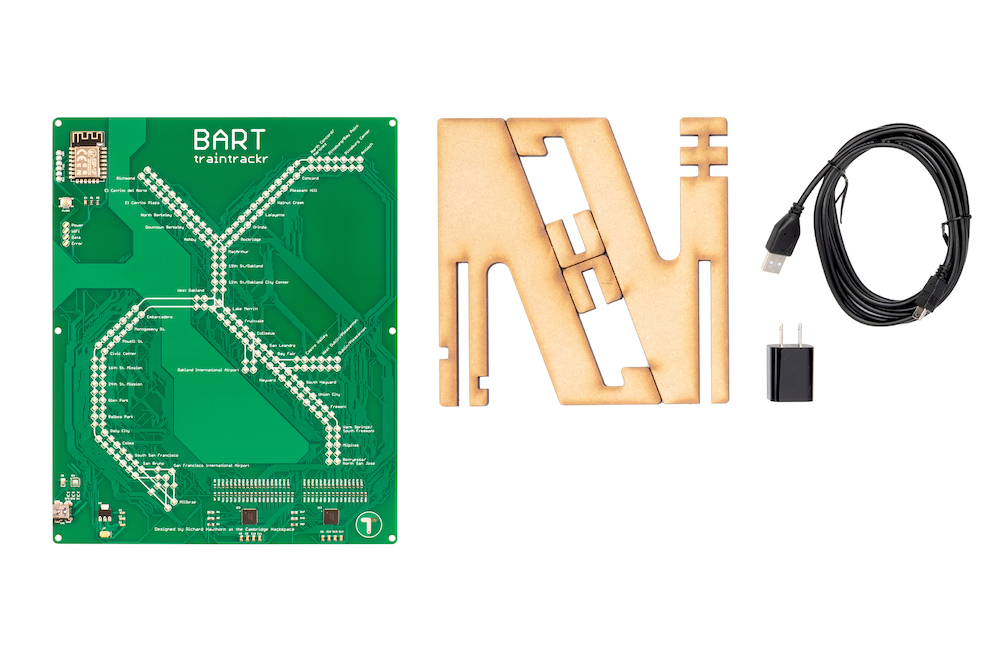

Package Contains
  • Live Tracker
  • Wooden Stand
  • Power Supply and Cable
  • Setup Instructions

Shipping and Warranty


Shipping
  • Ships to the US and Canada
  • Tracking code supplied once dispatched
Warranty
  • Standard 1 Year

Maker Friendly


Firmware
  • Flash the chip via FTDI Pins
  • Program using Arduino IDE or similar
  • Reprogrammable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
